Description
Measure NOVEC 4710 humidity, purity, decomposition by products of NOVEC 4710 and pressure for electric equipment filled with NOVEC 4710 gas.

iSF6-1800E C4 is designed for measuring humidity, purity, decomposition byproducts and chamber pressure for environmentally friendly GIS switchgear and high voltage equipment. It can collect and store the used NOVEC 4710 gas into an inner cylinder. The used gas can be pumped back into the original equipment under test after analyzing. iSF6-1800E C4 has integrated advanced measuring cells, i.e. thin-film polymer technology for measurement NOVEC 4710 humidity, non-dispersed Infrared (NDIR) technology for purity measurement. It has a unique way of sampling, high precision flow auto control and touch screen operation to improve the accuracy and ease of use.

Features


• Highly precise flow auto control
• Non dispersed Infrared technology for purity measurement Internal recovery and pump system
• Fast response feasible operation
• One button start operation
• Large capacity data storage
• Pressure and temperature compensation
• Self-sealing coupling
• Multi language selection
• TFT true color touch screen
• Over load protection

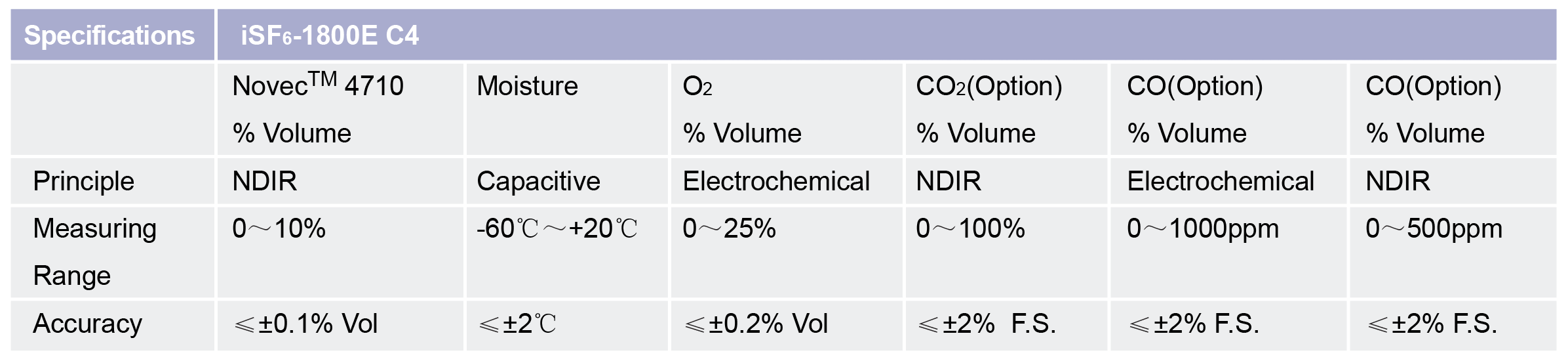

Specifications


iSF6-1800E C4 is compact, user- and maintenance-friendly device which guarantees high measuring accuracy. The unit allows different kinds of measurements and treatment of the measuring gas:
·       The measuring gas can be stored in an internal storage vessel and pumped back into the gas compartment (up to 10 bar pe)
·       No emissions of measuring gas
·       Modular interchangeability of the sensors
·       Easy and user-friendly menu navigation via high quality 7“ colour touch screen
·       Storage of measurement results with name, date and time
·       USB Key
·       Adjustable user languages: EN, FR, Simplified Chinese, Traditional Chinese
·       Compact design, easy handling and transportation (installed in a trolley case)
·       Pressure: 1.0~11 bar abs.
·       Flow rate: 250~600 ml/min
·       Working condition: 0℃ ~+40℃ 10~90% @40℃ , non-condensing
·       Mains power: 100~240 VAC 50/60 Hz
·       Dimension: 629 x 497 x 353 mm
·       Gross weight: 29 kg (transport case and accessories included)
